Heavy duty rubber wheels

Model Number : OY3-R100-SGZ

Place of Origin : China

MOQ : 300pcs

Price : negotiable

Payment Terms : T/T,Western Union

Supply Ability : 500 pcs per day

Delivery Time : 5-7 working days

Packaging Details : stardard export carton

name : heavy duty trolley wheel

guarantee : one year under normal condition use

material : gray rubber

diameter : 100mm,125mm,150mm and 200mm

plate type : swivel,fixed,side brake and dual brake

plate finish : zinc plated

braket thickness : 4.5mm,5.5mm

bearing : double ball

Contact Now

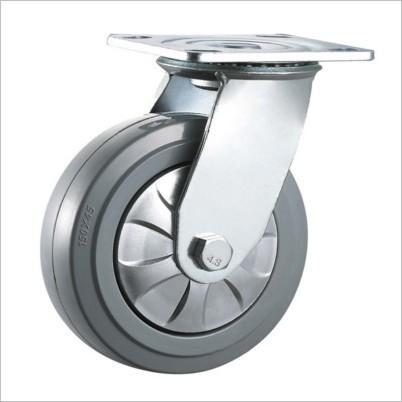

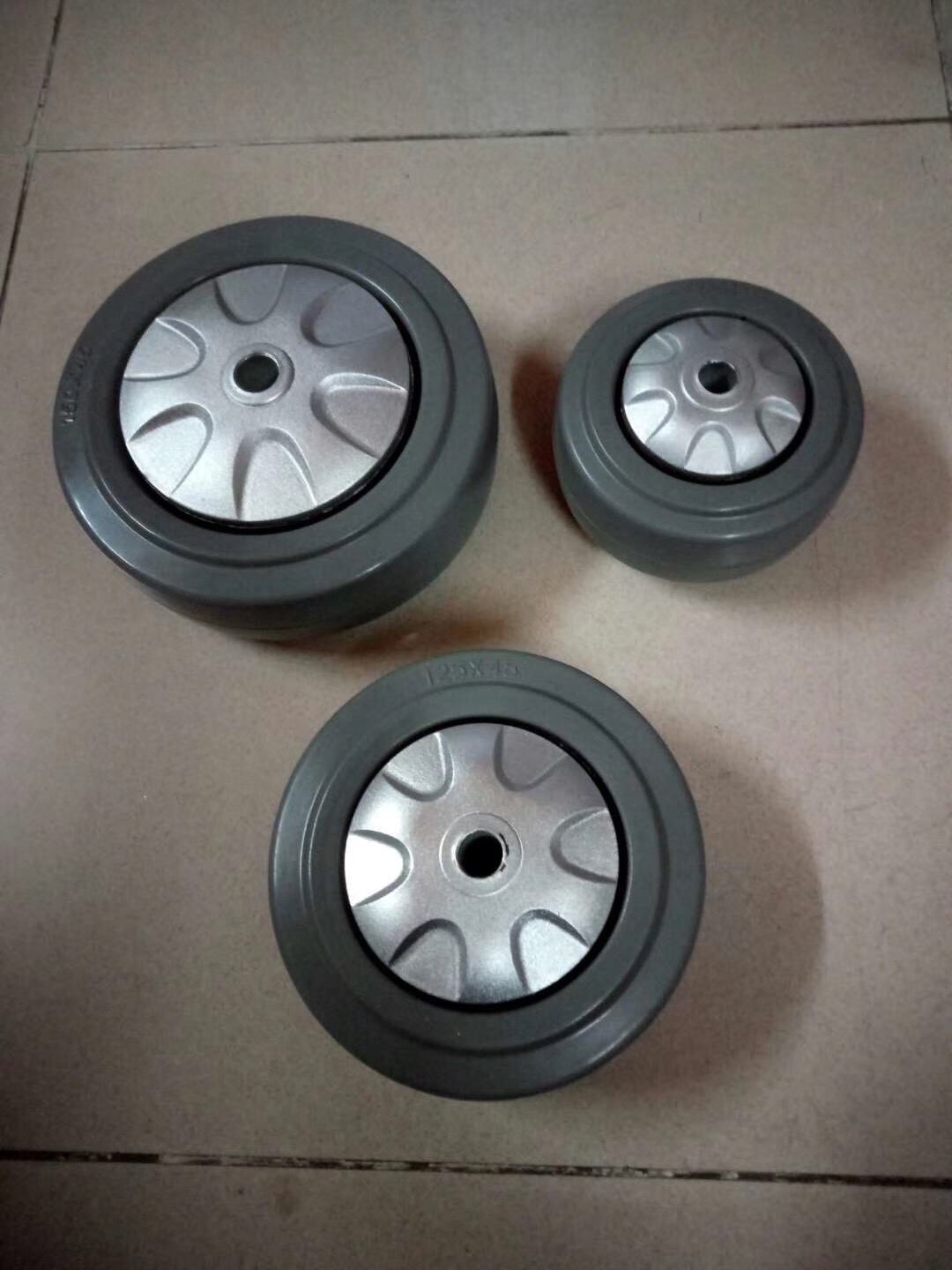

Heavy duty gray rubber trolley wheels

Product description

Heavy duty gray TPR rubber caster are durable and designed for institutional applications,trolley and other material handling equipment
swivel,rigid or total locking plate are optionals
Soft rubber tread,rolls silent on hardwood floor and tiles
Low starting effort, rolls easily
Metal thread guards is optional
Corrosion-resistant zinc finish,not easy to rust

Double ball bearing hub

360º ball bearing swivel plate

capacity from 400lbs to 600lbs

Technical parameters

Picture	Item No.	Material	Wheel diameter	Tread width	Load capacity	Overall height	Hole spacing	Plate size
	OY3-R100-SGZ	rubber	100mm	50mm	190kg	142mm	84*72mm	115*99mm
	OY3-R125-SGZ	rubber	125mm	50mm	220kg	163mm
	OY3-R150-SGZ	rubber	150mm	50mm	250kg	193mm
	OY3-R200-SGZ	rubber	200mm	50mm	300kg	240mm

Picture	Item No.	Material	Wheel diameter	Tread width	Load capacity	Overall height	Hole spacing	Plate size
	OY3-R100-FGZ	rubber	100mm	50mm	190kg	142mm	84*72mm	115*99mm
	OY3-R125-FGZ	rubber	125mm	50mm	220kg	163mm
	OY3-R150-FGZ	rubber	150mm	50mm	250kg	193mm
	OY3-R200-FGZ	rubber	200mm	50mm	300kg	240mm

Picture	Item No.	Material	Wheel diameter	Tread width	Load capacity	Overall height	Hole spacing	Plate size
	OY3-R100-BGZ	rubber	100mm	50mm	190kg	142mm	84*72mm	115*99mm
	OY3-R125-BGZ	rubber	125mm	50mm	220kg	163mm
	OY3-R150-BGZ	rubber	150mm	50mm	250kg	193mm
	OY3-R200-BGZ	rubber	200mm	50mm	300kg	240mm
