Super Heavy Duty Rubber Caster Wheel 700kgs

Product Categories
Shenzhen Oh Yeah Technology Company Limited
Contact Now

Super Heavy Duty Rubber Caster Wheel 700kgs

Model Number : OY4-R100-SLB

Place of Origin : China

MOQ : 50-100pcs

Price : negotiable

Payment Terms : T/T,Western Union

Supply Ability : 500 pcs per day

Delivery Time : 5-7 working days

Packaging Details : stardard export carton

name : extra heavy duty cast iron caster

application : heavy duty trolley

features : 4 pcs load 2000kgs

guarantee : one year under normal condition use

material : blue rubber wheel

core : cast iron

load capacity : 700-800kgs

diameter : 100mm,125mm,150mm ,200mm

tread width : 55mm

plate type : swivel,fixed, total brake

bearing : precision double ball bearing 6204

MOQ : 50-100pcs

Contact Now

heavy duty cast iron rubber casters

Product description

Item name: super heavy duty rubber on cast iron castor wheels
Wheel diameter: 4 inch,5 inch 6 inch and 8 inch available ,you can choose the diameter you need
Wheel width: 55mm
Mounting type: Top Plate
Top plate size: 140mm x 110mm

Top plate thickness: 10mm
Hole distance: 110mm x 73mm

Bracket(fork) thickenss:8mm
Wheel core: cast iron

Wheel tread:blue rubber,with shore A90
Bearing type: precision double ball bearing 6203/6204
Load capacity: 700kgs/piece,so 4 pcs can support 2000kgs
Mounting: swivel,fixed and total brake are optionals

1400 lb. load capacity per caster insures smooth, rolling action in even your heaviest applications
Premium blue rubber tread wheel molded onto a cast iron hub
Caster yoke is made of 8mm thick steel

Mouting plate is made from 10mm thick steel
Precision ball bearing assembly is integrated directly into the hub

Application:

Dumpster
Factory machinery

Heavy duty trolley

Super heavy duty equipment

Technical data

Picture Item No. Material Wheel diameter Tread width Load capacity Overall height Hole spacing Plate size
SWIVEL OY4-R100-SLB rubber 100mm 55mm 700kg 160mm 110*73mm 140*110m
OY4-R125-SLB rubber 125mm 55mm 700kg 180mm
OY4-R150-SLB rubber 150mm 55mm 800kg 202mm
OY4-R200-SLB rubber 200mm 55mm 800kg 252mm

Picture Item No. Material Wheel diameter Tread width Load capacity Overall height Hole spacing Plate size
FIXED OY4-R100-FLB rubber 100mm 55mm 700kg 160mm 110*73mm 140*110m
OY4-R125-FLB rubber 125mm 55mm 700kg 180mm
OY4-R150-FLB rubber 150mm 55mm 800kg 202mm
OY4-R200-FLB rubber 200mm 55mm 800kg 252mm

Picture Item No. Material Wheel diameter Tread width Load capacity Overall height Hole spacing Plate size
SWIVEL WITH BRAKE OY4-R100-BLB rubber 100mm 55mm 700kg 160mm 110*73mm 140*110m
OY4-R125-BLB rubber 125mm 55mm 700kg 180mm
OY4-R150-BLB rubber 150mm 55mm 800kg 202mm
OY4-R200-BLB rubber 200mm 55mm 800kg 252mm

Super Heavy Duty Rubber Caster Wheel 700kgs

Super Heavy Duty Rubber Caster Wheel 700kgs


Product Tags:

100mm Diameter Rubber Caster Wheel



700kgs Capacity Rubber Caster Wheel


Wholesale Super Heavy Duty Rubber Caster Wheel 700kgs from china suppliers

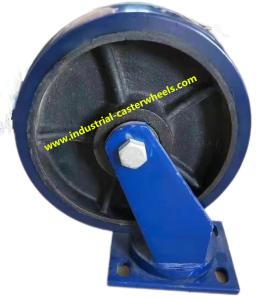

Super Heavy Duty Rubber Caster Wheel 700kgs Images
